Sommer Cable
|SKU: SC-BINARY-434-FRNC-CCA

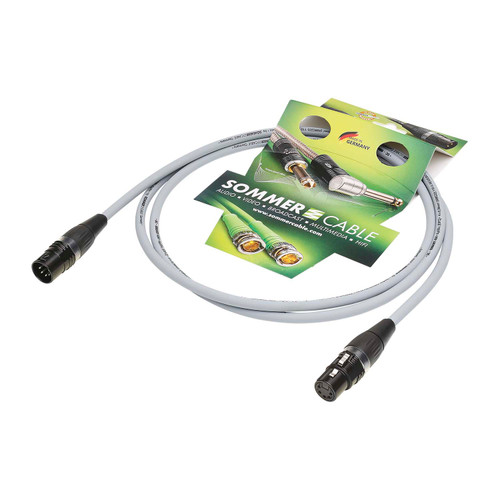

SC-Binary 434 DMX512-kabel, 4×0,34 mm², FRNC (Cca)
Beskrivning
SC-Binary 434 DMX512-kabel, 4×0,34 mm², FRNC (Cca)
When data have to pass to and fro, a digital cable with return channel should be used. The wave impedance is defined as 110 Ω. Of the 4 wires, 2 are employed for the feedback function. The robust outer jacket is suitable for outdoor and fixed installations alike. Colour coding according to DIN 47100. Owing to the double shielding (AL/PT foil + Cu braid) it offers very good protection against interference.
| Properties | Analog, Digital 110 Ω AES/EBU, OFC oxygen free copper | |
|---|---|---|
| Application | DMX | |
| Application area | ELA 100 V, Installation, Mobile outdoor/indoor, Stage/live, Studio/Broadcast | |
| Colour | black | |
| Signal transmission | symmetrical | |
| Construction | [2(2LI2YS0,34mm²)(ST)]CY | |
| Jacket material | FRNC | |
| Jacket Ø | 7,00 mm | |
| Inner conductor | 4 × 0,34 mm² (AWG 22), Ø 0,66 mm | |
| Shielding | Tinned copper braid + AL/PT foil (double shielding, 100 %) | |
| Conductor insulation | PE | |
| Impedance | 110 Ω | |
| Colour coding | DIN 47100 | |
| Weight | 72,77 g/m | |
| Fire load | 0,22 kWh/m | |
| Temperature | -15 … +80 °C | |
| CPR Euroclass | Cca | |
| Packing | 100 m spool | |
