DiGiGrid DLI

Audio Interface for Pro Tools Systems

DiGiGrid DLI is a networking hub that bridges Pro Tools and SoundGrid. With two DigiLink ports giving you as many as 64 digital inputs and outputs, the DiGiGrid DLI helps you get the most out of your existing Pro Tools system.

Add a SoundGrid DSP server to your DLI, and you will enjoy unequaled processing power, with more options for recording, monitoring and mixing in real time.

DiGiGrid DLI has two modes, I/O and SGP:

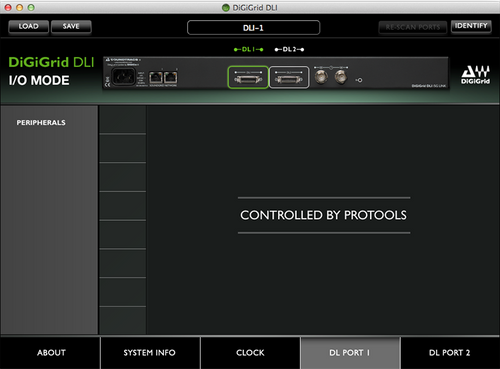

In I/O mode, DLI bridges your Pro Tools system with DiGiGrid I/Os and SoundGrid DSP servers. The Pro Tools system (HD/HDX or HD Native) continues to be your playback engine, while DLI appears as individual I/Os from which you can expand your studio: just connect additional DiGiGrid I/Os devices for more I/O or a DiGiGrid DGS-XL for real-time processing on the network.

In SGP mode, DLI bridges the DAW of your choice (Logic, Cubase,Nuendo, Ableton, Pro Tools Native, etc.) with SoundGrid applications and ASIO/Core Audio drivers, lets you control various DigiLink-compatible I/Os, and enables you to use a SoundGrid server to which you can offload your plugin processing.

In both modes, a single Ethernet cable will enable you to connect your system to additional DiGiGrid I/Os.

Specifications

• 2 DigiLink ports; 64 channels in either SGP or I/O mode (32 channels per port).
• Compatible with the following DigiLink-enabled I/Os: Digi192, Digi96, HD Omni, HD I/O, Apogee Symphony I/O, Lynx Aurora 8, Lynx Aurora 16.
  • I/O mode: DLI acts as an interface connected to HD Core, HD Accel, HDX or HD Native cards; supports Pro Tools TDM 10.x and 11.x
  • SGP mode: DLI acts as a controller for DigiLink-enabled I/Os
• 2 SoundGrid RJ45 Ethernet ports
• 1 AC input
• 1 Word Clock/Loop Sync I/O
• 1 USB port
• 1U rackmount
• Supported sample rates: 44.1, 48, 88.2 and 96 kHz (176.4 and 192 kHz will be supported in the future)
• Recovery switch
• Clocking options: Word Clock/Loop Sync, SoundGrid (SoE), or DigiLink
